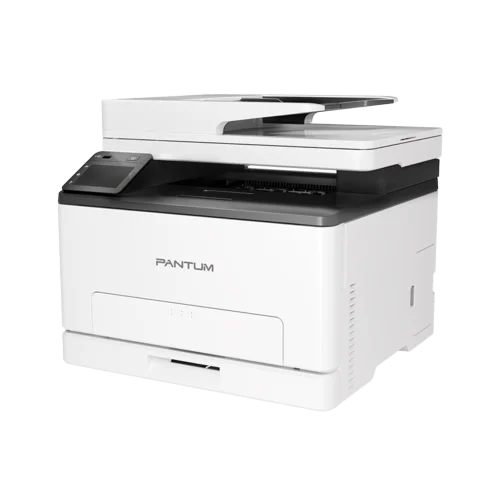

CM1100ADW
SIMPLE AND PRACTICAL, BOLD AND BRILLIANT
Vibrant Outputs in High Quality Print out your masterpieces in vivid color and with high quality to better display your work
User-friendly Auto Duplex Printing Print out with 2-sided outputs to save budget and paper
Feed the Paper with ADF Free your hand from repeatedly load the paper when scanning and copying
Print at Your Fingertips Conveniently complete your printing tasks with Pantum APP, available for different document types
Product Specifications
Model
Print Specification
Print speed(A4/LTR) 18ppm(A4) ； 19ppm(LTR) Duplex Print speed 6ppm(A4) /6ppm(LTR) First print out time Mono：10s；Color：11s Resolution Optical：600*600dpi;Maximum：1200*600dpi Printer language PCL6/PS3 Processor speed 1GHz Memory 1GB Recommended monthly page volume 300-1500 Pages Maximun Monthly duty cycle 30000 Pages Control panel 3.5 inch touch screen Other printer function Watermark Printing Poster Printing Multi-page in one Printing Brochure Printing One step driver installation Direct USB YES Standard Ports USB2.0(High Speed) IEEE802.3 10 /100Base-Tx IEEE802.11b/g/n(support WPS) Mobile print Airprint ; Mopria ; Pantum App Duplex Printing Auto
Paper handling
Paper Input Capacity 250 Pages Multipurpose tray 1 Page Paper output capacity 100 Pages Media types Plain:70~105g/m² (Including 105g/m²) Thin:60~70g/m² (Not including 70g/m²) Thick:105~200g/m² (Not including 105g/m²) Transparency/Cardstock/Label/Envelope Media sizes A4、 Letter、 Legal、 Folio、 Oficio、 JIS B5、 ISO B5、 Executive、 Statement、 A5、Big 16K、16K、Big 32K、32K、 A6、 No.10 Env、 Monarch Env、 DL Env(Envelope No. 5)、 C5 Env(Envelope No. 7)、 C6 Env、 Yougata4、 Younaga3、 Nagagata3、 Yougata2、 ZL (Envelope No. 6)、 Postcard、B6、 Japanese Postcard Custom: minimum 96x148mm~maximum 216x356mm Media weights Standrad tray：60~200g/㎡ Multipurpose tray：60~105g/㎡
Copy Specification
Copy color color/black Copy speed 18ppm Copy Resolution FB mode：Max 600*600 dpi ADFmode：Max 600*600 dpi First copy out time FB：16s ADF：18s Max.copy page 99Pages Copy reduce / enlarge settings 25%-400% Copy function ID copy Receipt copy N-up copy Clone copy poster copy
Scan Specification
Scanner type FB+ADF Scan mode Color、Gray、Monochrome (PC only) Scan technology CIS ADF scan speed 18ppm (300*300 dpi) Scan to PC/Email/FTP/USB flash disk /ios/Android ADF capacity 50Pages Scan to USB Yes Format JPEG、TIFF、PDF Color scaning Yes
General
Printer Dimensions（W×D×H) 401*411*358mm Weight(with cartridge ) 19.4kg Package Dimensions（W×D×H) 535*555*456mm Total Weight(Include Printer ,cartridge and package ) 22.1kg Noise Level print/scan≤52dBA copy≤54dBA Mute≤47dBA standby≤30dBA Power consumption Print Average：≤380W Standby: ≤10W Dormant：≤1W Off：≤0.15W Power AC 110-127V，50Hz/60Hz，7A AC 220-240V，50Hz/60Hz，3.5A Print environment Operating temperature：10-32℃;Relative humidity：20% ～ 80%RH;Altitude：≤2000m Operating system compatibility Windows XP/Windows7/Windows8/Windows8.1/Windows10/Windows 11/Windows server/2012/2016(32bit/64bit)
Consumable

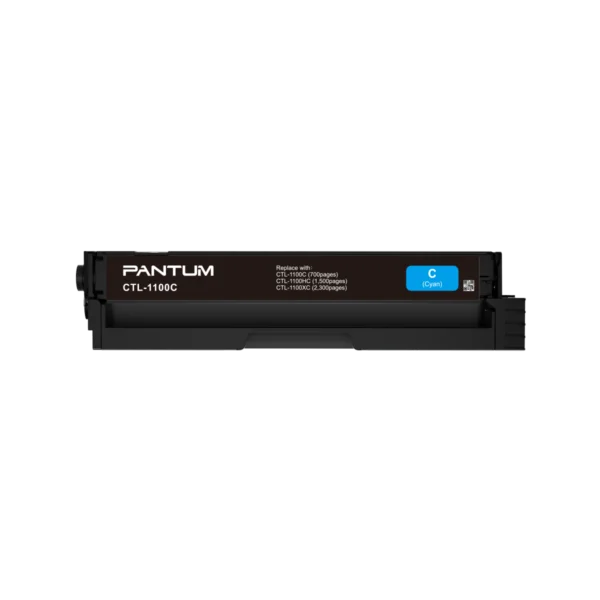

Consumable type One-piece Starter cartridge CTL-1100K：1000Pages CTL-1100C/CTL-1100M/CTL-1100Y：700Pages Cartridge model and yiled ①CTL-1100K：1000Pages、CTL-1100C/CTL-1100M/CTL-1100Y：700Pages ②CTL-1100HK：2000Pages、CTL-1100HC/CTL-1100HM/CTL-1100HY：1500Pages ③CTL-1100XK：3000Pages、CTL-1100XC/CTL-1100XM/CTL-1100XY：2300Pages Waste powder bottle CWT-1100：15000Pages Note (1)The toner cartridge capacity is the average print volume of the toner cartridge during continuous printing in the single-sided mode, based on the ISO/IEC 19798 standard. Actual print volume may vary based on other factors such as paper size and feed direction, toner coverage, tray source, percentage of black-only printing, and average print job complexity
